ISO 21498-2:2021 specifies the test requirement of new energy automotive HV component with the DC voltage from 60 V to 1500 V. A series of electrical characteristic test can be applied to verify the electrical parameters and safety of HV battery system, DC/DC converter HV/LV, on board charger, air conditioning compressor etc.
The HV power EVTS 150C10 in test system supports DC 0 V ~ 1500 V voltage output with voltage slope up to 250 V/ms, it also satisfies the test requirement in LV 123 and VW 80300, featuring high extendibility.
Features:
> Meet the latest ISO 21498-2:2021, LV 123 and VW 80300 test requirement;
> Voltage output DC 0 V ~ 1000 V/1500 V, support arbitrary waveform editing;
> Power can be extended to master and 3-slave, current output 60 A, 120 A, 240 A;
> Voltage slope up to 300 V/ms;
> Simulating various complex electrical environment in actual application scene;
|
ISO 21498 Test Requirement List |
|||
|
Test Items |
Type |
Satisfied/Unsatisfied |
Needed Equipment |
|
DC supply voltage variation within operational range |
Immunity-voltage variation |
Satisfied |
EVTS 150C10, C101500, AN 1501 TPT-7637-4C100B |
|
Generated voltage slope |
Emission |
Satisfied |
|
|
Immunity to voltage slop |
Immunity-voltage variation |
Satisfied |
|
|
Generated voltage ripple |
Emission |
Satisfied |
|
|
Immunity to voltage ripple |
Immunity-DC superimposed ripple |
Satisfied |
|
|
Overvoltage |
Immunity-voltage variation |
Satisfied |
|
|
Undervoltage |
Immunity-voltage variation |
Satisfied |
|
|
Voltage offset |
Immunity-voltage variation |
Satisfied |
|
|
Generated load dump voltage |
Emission |
Satisfied |
|
|
Immunity to load voltage |
Immunity-voltage variation |
Satisfied |
|
Equipment Specification
|

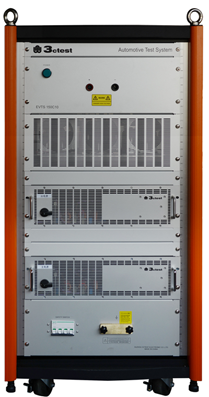

Vehicle HV DC Power -EVTS 150C10 |
|
|
DC Voltage |
Max. 1500VDC |
|
Current |
Max. 120A |
|
Power Consumption |
Max. 60 kW |
|
Over-voltage Protection Range |
0~ 1650V |
|
Over-current Protection Range |
0~ 132A |
|
Over-power Protection Range |
0~ 66 kW |
|
Voltage Range |
0~ 1500V |
|
Inner Impedance |
0/50/100/200 mΩ |
|
Waveform |
Sine wave, rectangular wave, triangular wave, RAMP wave |
|
Amplitude and Position Changes |
Static, Liner |
|
Sync. Control |
0~360° |
|
Number of Segments |
Max. 99 |
|
count |
1~999 |
|
Extendibility |
Support current and power consumption function customization. |
|
Functions of Generate Load Dump Voltage |
|
|
Max. Switch Current |
100 A |
|

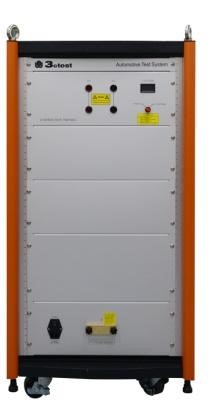

DC Decoupling Capacitor-C101500 |
|
|
Input DC Voltage |
Max. 1500 V |
|
Capacitance |
≥10 mF |
|
Working Power |
AC 110 V/220 V, ±10%, 50 Hz /60 Hz (AC 220 V in mainland China) |
|
Fuse |
6 A |
|
Max. Power Consumption |
100 W |
|
Dimension |
22U |
|
Weight |
Approx. 70 kg |
|
Ambient Temperature |
18℃~28℃ |
|
Relative Humidity |
25%~75% |
|
Atmospheric Pressure |
86 kPa~106 kPa |
|

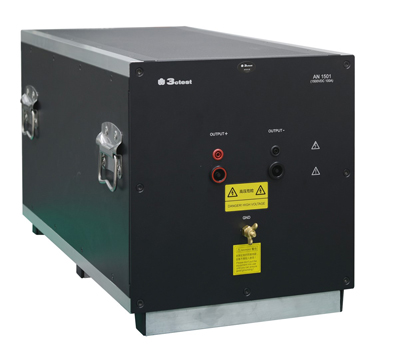

Artificial Networks-AN 1501 |
|
|
Test Voltage (Vmax) |
1500 V DC |
|
Test Current (Imax) |
100 A |
|
Transient Current |
Max. 280 A |
|
Input/Output Port |
4 mm banana plug/ 100 A port |
|
Impedance |
25 mΩ impedance curve |
|
Inductance |
1 μH |
|
Capacitance |
1 μF |
|
Frequency Range |
10 Hz ~ 150 KHz |
|
Fan Power |
AC 220 V,±10%，50 Hz |
|
Fuse |
6 A |
|
Max. Power Consumption |
100 W |
|
Dimension |
310 mm*310 mm*600 mm(L*W*D) |
|
Weight |
30 kg |
|
Ambient Temperature |
15℃ ~35℃ |
|
Relative Humidity |
45% ~75% |
|
Atmospheric Pressure |
86 kPa ~ 106 kPa |
|

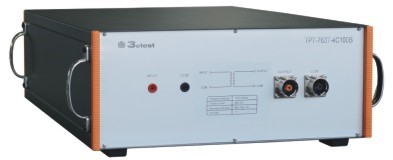

Coupling Transformer-TPT-7637-4C100B |
|
|
Max. Unsaturated Voltage |
15 V@15 Hz≤f≤3 kHz 25 V@3 kHz≤f≤30 kHz 2.5 V@30 kHz≤f≤300 kHz |
|
Primary Current（A） |
Max. 32 A |
|
EUT Current（A） |
Max. 100 A |
|
Frequency Range |
15 Hz ~ 300 kHz |
|
Dimension |
440 mm (L)*190 mm (H)*585 mm(D) |
|
Weight（kg） |
60 kg |
