Calibration Fixture for Wide-band Current Monitor Clamp WCMCF 500

Model：WCMCF 500

Profile

The WCMCF 500 is the calibration fixture for wide-band current monitor clamp or current injection clamp.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The WCMCF 500 is the calibration fixture for wide-band current monitor clamp or current injection clamp. It is a kind of wide-band signal transmission/coupling device with features of small voltage standing wave ratio and no waveform distortion. The device can be quickly disassembled, especially suitable for calibration of closed/annular probe, which meet the test requirement of CS114, CS115 and CS116 specified in MIL-STD-461E/F/G, GJB 151A-97 and GJB 151B-2013.

GJB 151B:2013
GJB 151A-97
MIL-STD-461E/F/G

Specification
Frequency	DC ~ 500 MHz
Characteristic Impedance	50 Ω

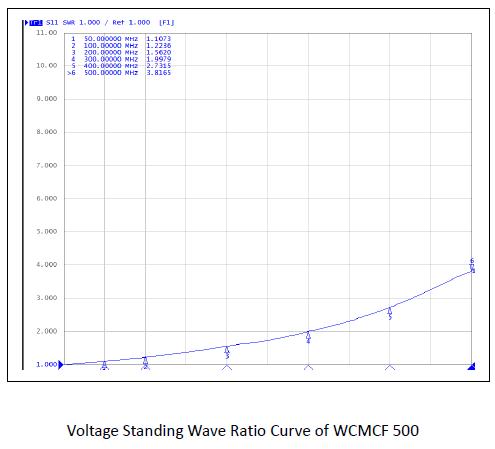

VSWR	≤4
Inner Diameter	40 mm
Inner Length	64 mm
Inner Width	127 mm
Inner Height	132 mm
Weight	4 kg
