HOME>Products>Military Test Equipment>MIL-STD-461 Series/ GJB 151、181 Series > Wideband Current Transformer WCT 20

Wideband Current Transformer WCT 20

Model：WCT 20

Profile

The WCT 20 is used in conducted, differential mode current test as per IEC 61000-4-19.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The WCT 20 is used in conducted, differential mode current test as per IEC 61000-4-19. It is capable of realizing electric isolation between differential-mode signal generator and EUT to ensure test safety.

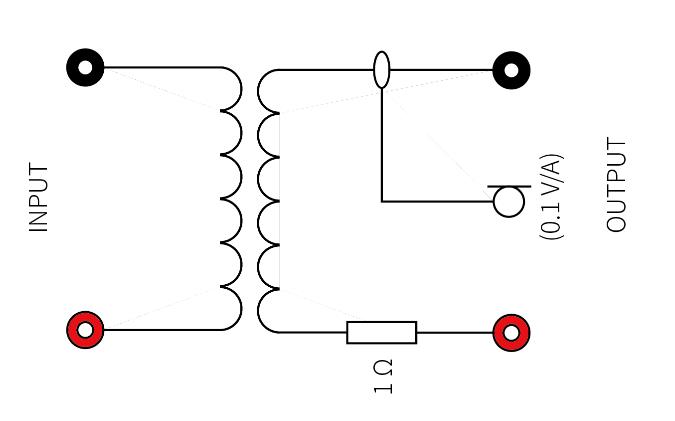

Design Schematic Circuit：

Technical Parameters
Frequency	2 kHz ~ 150 kHz
Maximum Current	5 A
Maximum Voltage	＜22 V
Impedance	1 Ω±0.3 Ω
Connection Port	4 mm banana plug
Ambient Temperature	5 ℃~40 ℃
Relative Humidity	＜ 80%
Atmospheric Pressure	86 kPa ~ 106 kPa
Dimension	200 mm （L）×150 mm（W）×53 mm（H）
Weight	2.5 kg
