HOME>Products>Automotive EMC Test Equipments>Artificial Network >Artificial Network TAN 400C

Artificial Network TAN 400C

Model：TAN 400C

Profile

The artificial network TAN 400C is mainly used for CISPR 25 testing to isolate low-voltage components from the power supply and for conducting interference voltage testing on power lines.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The artificial network TAN 400C is mainly used for CISPR 25 testing to isolate low-voltage components from the power supply and for conducting interference voltage testing on power lines. The impedance fully meets the characteristics of the CISPR 25 standard artificial power network. The EUT is connected to the OUTPUT output terminal of the panel, and the power port is connected to the INPUT input terminal of the panel. The EMI measurement port is a standard N-type interface.

Features：
> Compliant with CISPR 25 standard
> The maximum continuous current can reach 400 A
> Frequency range 0.1 MHz ~110 MHz
> Test voltage maximum 500 V DC, 250 V 50 / 60 Hz, 125 V 400 Hz
> N-type test terminal

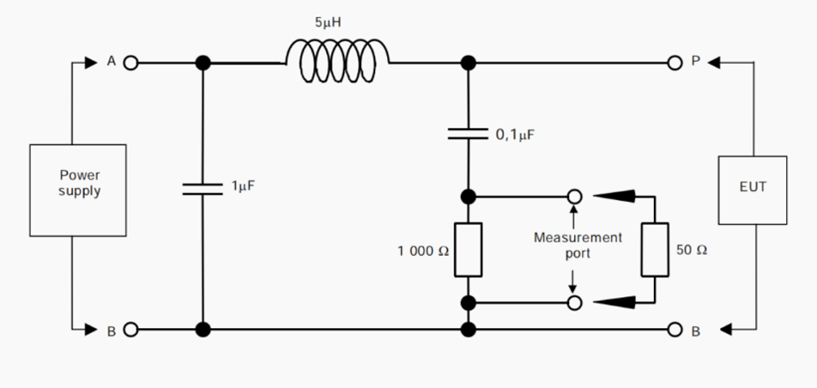

Circuit Principle Diagram：

Naming Rules：

CISPR 25:2021

Technical Parameters
Test voltage Vmax	500 V DC
	250 V 50 / 60 Hz
	125 V 400 Hz
Test current Imax	400 A
Instantaneous maximum current	500 A
Impedance	5 μh ‖ 50 Ω ± 10%
Impedance frequency range	0.1 MHz ~ 110 MHz
Coupling capacitance	0.1 μF
Decoupling	1 μF
General Parameters
Test terminal	N-type
Chassis size	200mm(W)220mm(H)420mm(D)
Instrument weight	About 11 kg
Temperature range	15 ℃ ~ 35 ℃
Humidity range	45% ~ 75%, RH (no condensation)
Compressed air	86 kPa ~ 106 kPa

Standard Accessories：Instructions, Quality inspection report
