      Spike Surge Voltage Simulator VSS 1275F
      Model：VSS 1275F

      Profile

      The spike surge voltage simulator VSS 1275F is designed for spike and surge conducted susceptibility tests to 28 V DC
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video
      The spike surge voltage simulator VSS 1275F is designed for spike and surge conducted susceptibility tests to 28 V DC input power to utilization equipment in military vehicles as per MIL-STD-1275F. The product can be extended to 400 A by using diode device DM 400 and line impedance stabilization network LISN ML 400.


      Features:

      > 5.7” color touch screen front panel operation;
      > Ethernet & RJ45 interface for PC remote control, support test report generation and print;

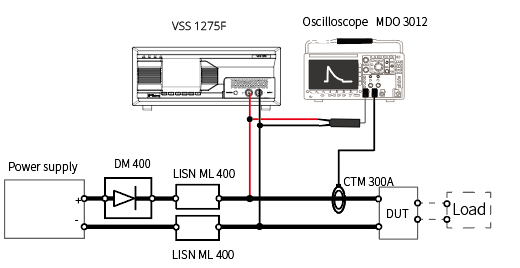

      Test Setup for Surge Voltage

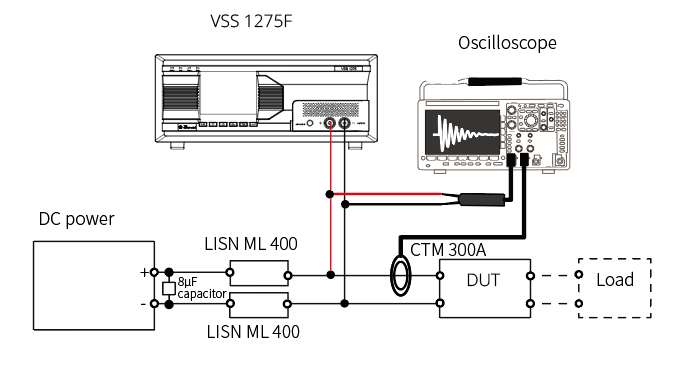

      Test Setup for Spike Voltage




      • MIL-STD-1275F

      Surge Waveform Technical Parameters

      Surge Voltage

      30 V ~ 230 V

      Surge Energy

      1200 J Max.

      Rise Time

      1~10 ms

      Duration

      50 ms (-0/+5) S1
      500 ms (-0/+5) S2

      Generator Impedance

      < 50mΩ（DC）+ 0.3 mH

      Repetition

      5 s ~ 99 s

      Counter

      1~9999

      External Diode Device
      DM 32 (option)

      Max. Current 32 A (DC）
      Max. Voltage 50 V (DC      ）

      External Diode Device
      DM 400 (option)

      Max. Current 400 A (DC）
      Max. Voltage 50 V (DC      ）

      External LISN
      LISN ML 400 (option)

      Max. Current 400 A (DC）
      Max. Voltage 500 V (DC      ）

      Spike Waveform Technical Parameters

      Spike Voltage

      50 V ~ 300 V

      Spike Energy

      ＜125 mJ

      Rise Time

      <50 ns

      Polarity

      Positive, Negative

      Repetition

      5 ms~1000 ms

      Counter

      1~9999

      Oscillatory Frequency

      100 kHz ＜f ＜500 kHz

      External Capacitor
      DCM 8-4032 (option)

      8 μF （DC: 400V/ 32A）

      External LISN
      LISN ML 400 (option)

      Max. Current 400 A (DC）
      Max. Voltage 500 V (DC      ）

      Options

      Diode Device
      DM 32

      Max. Current 32 A (DC）
      Max. Voltage 50 V (DC      ）

      Diode Device
      DM 400

      Max. Current 400 A (DC）
      Max. Voltage 50 V (DC      ）

      Line Impedance Stabilization Network
      LISN ML 400

      5 μH inductance
      Max. Current 400 A (DC),
      Max. Voltage 500 V (DC)

      Current Measurement Module
      CTM 300A

       Test Range: 0~ ±300 A

      Calibration Resistor
      R05

      Impedance: 0.5 Ω

      Accessories

      User Manual, Test line, Power line, Earth line, Fuses (spare parts)

      General Parameters

      Display Screen

      5.7” touch screen

      Working Power

      AC 110 V/220V（±10%）50 Hz/60 Hz

      Fuse

      6A

      Dimension

      19”/4U rack, 450 mm (L) * 620 mm (D) * 190 mm (H)

      Weight

      Approx. 28 kg

      Ambient Temperature

      15 ℃ ~ 35℃

      Relative Humidity

      45%–75%

      Atmospheric Pressure

      86 kPa–106 kPa
