Technical Parameter

Frequency range

10Hz ~ 300kHz

Stepped frequency

0.01Hz

Maximum open circuit output voltage

160 Vpp

Ripple dwell time

2 s~999 s, resolution 0.1 s

Maximum output current

100 App

Voltage accuracy

±0.2 V

General parameters

Supply voltage

AC 380 V， Soil 10%, 50 Hz/60 Hz

Trigger Mode

Automatic trigger, manual trigger, external trigger

User storage space

infinite

failure detection

When it fails, the front panel LCD displays and interrupts the instrument's operation

Instrument working status indication

LED indicator LCD display

Instrument weight

156 kg

Chassis size

22U

Instrument grounding connection method

Use a flat grounding wire

Ambient temperature

15 ℃- 35 ℃

Humidity range

45% - 75%

Compressed air

86 kPa -106 kPa

Maximum power consumption

6 kW

Standard accessories

Instruction manual, factory report, test line, power cord, fuse

Optional accessories

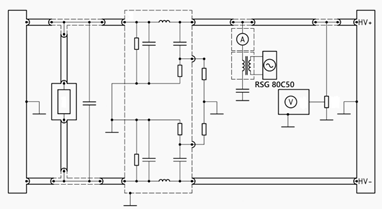

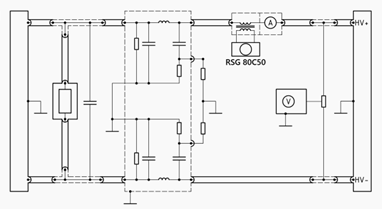

Coupling transformer TPT-7637-4C100B

Maximum Unsaturated Voltage (Vpp) 160 Vpp

Maximum coupling current (App) 100 App

Maximum EUT current (A) DC 100 A

Maximum EUT voltage (V) DC 1000 V

Turn ratio 1:1

Frequency range 10 Hz~300 kHz

Immunity testing software CoreLab

>Supports Windows 7 and Windows 10.

>Standard testing library, users can customize testing programs.

>Users can customize any waveform (outside of the standard library).

>It can automatically/manually identify the connected Autolab testing equipment and perform automatic configuration.

>The template based reporting feature can help users generate test reports flexibly.
