Introduction
AN 150C10 is designed according to ISO 21498-2, MBN_11123, and VW 80300, with integrated impedances of 0m Ω, 2 * 10m Ω, 2 * 25m Ω, 2 * 50m Ω, 2 * 100m Ω, 50m Ω, 100m Ω, 200m Ω, and 10mF capacitors. This device can be used for testing with a maximum DC current of 1500 V and 100A.
Features
> Color touch screen operation, selecting internal resistance according to standards, automatically switching impedance and capacitance through relays, no manual switching required during testing, safe and convenient;

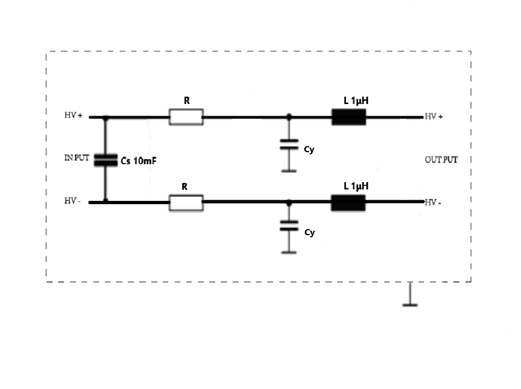

The standard schematic diagram is as follows:
|
Technical Parameter |
|
|
Frequency Range |
10 Hz~150 KHz |
|
Output Impedance |
0mΩ，2*10mΩ，2*25mΩ，2*50mΩ，2*100mΩ，50mΩ，100mΩ，200mΩ |
|
Inductance |
1 μH |
|
Grounding Capacitance |
1 μF or 220nF |
|
Decoupling Capacitor |
10 mF（0~+10%） |
|
Input Voltage |
MAX 1500 V DC |
|
Current |
Continuous 100 A, maximum 200 A (continuous for 2 minutes) |
|
Capacitor Voltage Monitoring |
Display the voltage value at the 10mF capacitor terminal |
|
Temperature Protection |
Stop operation when the internal temperature of the equipment exceeds 80 degrees Celsius |
|
General Parameters |
|
|
Scope Of Working Power Supply |
AC 220 V±10%，50/60 Hz±5% |
|
Fuse |
6 A |
|
Maximum Power Consumption |
400 W |
|
Instrument Grounding Connection Method |
Use a flat grounding wire |
|
Cabinet Size |
35U（600*800*1850 mm） |
|
Weight |
About 260 kg |
|
Temperature Range |
15-35℃ |
|
Humidity Range |
10% - 75% |
|
Pressure Range |
86 kPa – 106 kPa |
|
Standard accessories |
|
|
Power line, test line, grounding wire, instruction manual |
|
|
Optional accessories |
|
|
Automotive Immunity Testing Software Autolab |
Supports Windows 7 and Windows 8, 10, and 11. It is easy to use, has a beautiful and intuitive user interface, and various operational functions and standard testing libraries allow users to easily complete custom testing programs; Users can customize any waveform (outside of the standard library); It can automatically/manually identify the connected Autolab testing equipment and perform automatic configuration; The template based reporting feature can help users generate test reports flexibly. |
