Based on the theory of transmission line waveguides, the characteristic impedance is 50 ohms, and electromagnetic waves propagate in the guided wave structure in the form of quasi TEM waves, generating a relatively uniform surface current on the electrode plate. Used for surface current probe calibration and calibration.
|
Technical Parameter |
|
|
Frequency range |
0 Hz-300 MHz |
|
Characteristic impedance |
50 Ω |
|

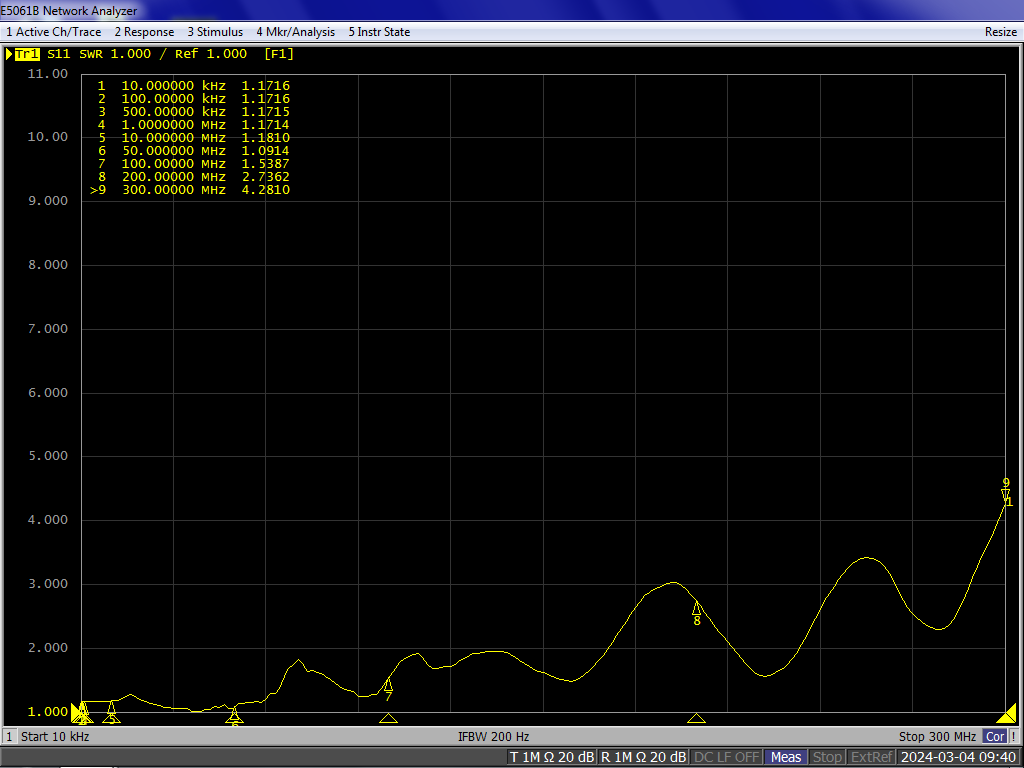

Standing-wave ratio |
≤2（0 Hz-100 MHz）/≤5（100 MHz-500 MHz） |
|
Workplace size |
500 mm×1000 mm×200 mm |
|
Interface type |
N-type |
|
Outer Dimensions |
1400 mm (length) * 1000 mm (width) * 200 mm (height) |
|
Weight |
25 kg |
