High Voltage LISN TANHV Series

Model：TANHV Series

Profile

The high voltage lisn TANHV series are used for isolating components and power source in test as per CISPR 25 and ISO 7637-4: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The high voltage lisn TANHV series are used for isolating components and power source in test as per CISPR 25 and ISO 7637-4, also can be used in measuring e-vehicle hv test system's interference characteristics.
The EMI measuring port are type N.

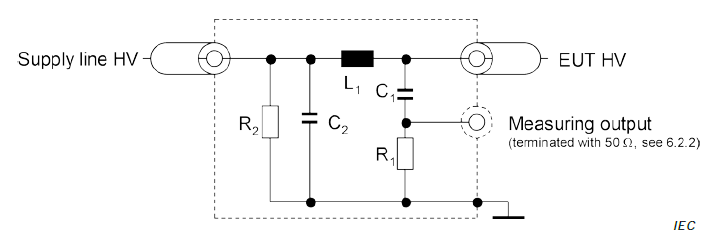

Features:

L1：5 μH C1：0.1 μF
C2：0.1 μF R1：1 KΩ
R2：1 MΩ

CISPR25
ISO 7637-4

TANHV 050-Technical Parameters
Test Voltage (Vmax)	300 V 400 Hz
	700 V 50/60 Hz
	1000 V DC
Test Current (Imax)	50 A
Instantaneous Max. Current	80 A
Dimension	220 x 160 x 170 mm
Weight	Approx. 2.2 kg
TANHV 200-Technical Parameters
Test Voltage (Vmax)	300 V 400 Hz
	700 V 50/60 Hz
	1000 V DC
Test Current (Imax)	200 A
Instantaneous Max. Current	280 A
Dimension	490 mm200 mm215 mm
Weight	Approx. 8.5 kg
TANHV 400-Technical Parameters
Test Voltage (Vmax)	300 V 400 Hz
	700 V 50/60 Hz
	1000 V DC
Test Current (Imax)	250 A
Instantaneous Max. Current	500 A
Dimension	490 mm200 mm215 mm
Weight	Approx. 8.5 kg
General Parameters
Impedance Frequency Range	0.1-150 MHz
Impedance	5 μH ‖ 50 Ω
Coupling Capacitor	0.1 μF
Ambient Temperature	15-35 ℃
Relative Humidity	45% - 75%
Atmospheric Pressure	86 kPa – 106 kPa

Accessories

User manual
