Coupling/Decoupling Networks for Immunity to Conducted, Differential Mode Disturbances CDN 419M3-32

Model：CDN 419M3-32

Profile

The CDN 419M3-32 is designed in accordance with IEC610000-4-19:2014 and applicable to immunity to conducted: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The CDN 419M3-32 coupled decoupling network is suitable for single-phase 2-wire or 3-wire cables with differential mode conducted immunity, and its coupled differential mode conducted immunity voltage can reach 30 V. Design strictly in accordance with the requirements of IEC 61000-4-19:2014 standard

Features
> Conform to IEC 61000-4-19;
> Applicable to differential mode test on 2-line or 3-line;
> Banana head terminal signal injection.

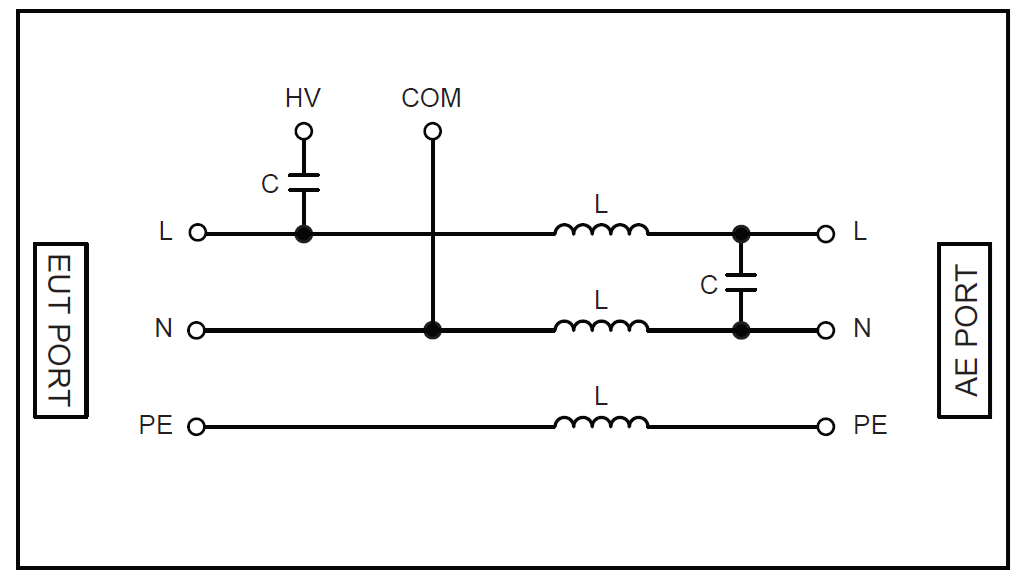

1.Standard Schematic Circuit

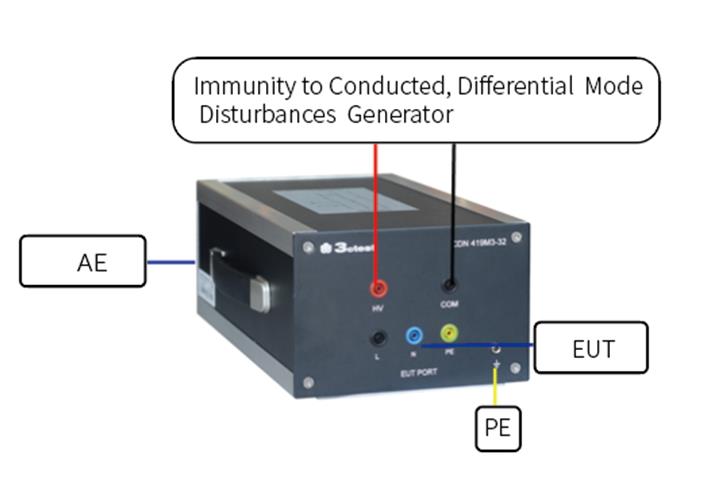

2.Test Connection Illustration

IEC 61000 - 4 -19

Technical Parameters
Standard	IEC 61000-4-19:2014
Coupling Frequency	2 kHz~150 kHz, CW wave
Coupling Voltage	30 V
Coupling Mode	2-wire/3-wire differential mode (L vs. N wire)
Coupling Device	12 μF capacitor
Working Voltage	Maximum 400 V DC
Working Current	Maximum 32 A
AE/EUT Port Type	4 mm banana head
Signal Injection Port Type	4 mm banana head
General Parameters
Weight	Approximately 10 kg
Size	360 mm x 220 mm x 135 mm (length x width x height)
Shell Material	Aluminum material
Ambient Temperature	15 ° C -35 ° C
Relative Humidity	45% -75%

Standard Accessories

Test line
