Technical Parameter |
|
|
Output Voltage |
10 V~ 30 kV |
|
Tolerance |
±5%±2 V |
|
Polarity |
Positive, negative or alternative (first positive and then negative) |
|
Repetition Time |
10~99 s |
|
Repetition Number |
1~99 |
|
Trigger Mode |
Manual/Auto/External Trigger |
|
Charging Capacitor |
500 pF/2 nF ±5% |
|
Serial Discharging Resistor |
500 Ω/5000 Ω ±5% |
|
General Parameter |
|
|
Working Power |
AC 110 V/220 V，±10%，50/60 Hz（default 220V in mainland China） |
|
Fuse |
6 A |
|
Max. Power Consumption |
100 W |
|
External Trigger Input |
BNC, 5V TTL, the node is open usually and triggered when closed; |
|
Ambient Temperature |
15 ℃ ~ 35℃ |
|
Relative Humidity |
45% ~ 75% |
|
Atmospheric Pressure |
86 kPa ~ 106 kPa |
|
Weight |
Approx. 15 kg |
|
Dimension |
19”/4U |
|
Accessories |
|

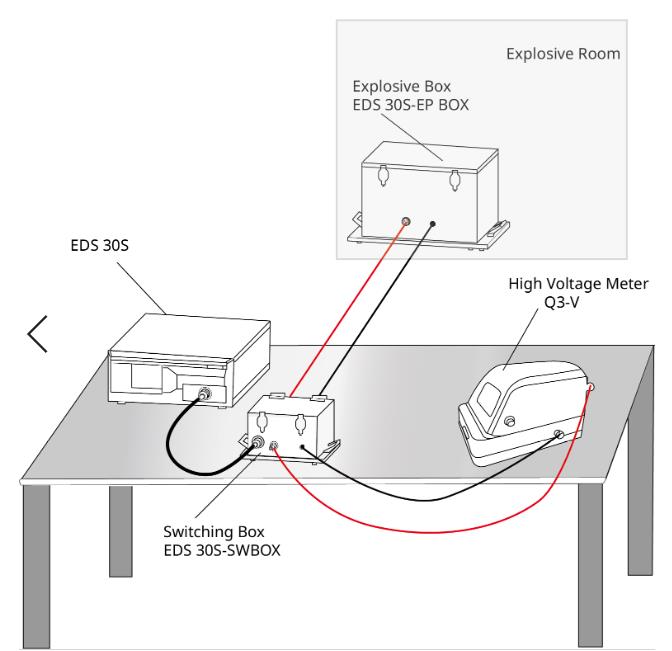

Fuse, Power line, Flat ground line, Test line, alligator clip, User Manual, Explosive box EDS 30S-EP BOX, Switching box EDS 30S-SWBOX, High Voltage Meter Q3-V, Capacitor modules 500 pF & 2 nF, Resistor module 500 Ω & 5000 Ω |
