Corelab is 3ctest integrated test software, software and hardware together constitute the whole test system. At present, this software has met the GB/T 17626 series test, the national military standard GJB 151, GJB 181 and DO160 and other standard tests.Support Ethernet communication mode, greatly convenient for users to use; Automatic test sequence can be set to achieve remote one-click test operation, easier operation.
Characteristics
> Compatible with Windows 7, Windows 8 and Windows 10 operating systems;
> Support Ethernet interface and serial communication mode;
> Can control DO160 series equipment;
> Can control the US military standard series equipment;
> Can control the national military standard series equipment;
> Can control electronic and electrical experimental equipment;
> Waveform and standard library interface display according to the series of added devices;
> Powerful scheduling and test sequence, one-click remote control test;
> Support single test/sequence test report export, support user-defined test report template;
> Emergency stop function, one-click control, make the test safer.
Highlights
> Multi-window graphical UI;
> Support parameter scheduling test, test sequence, one-click test, simple operation;
> Can set customer information, automatically generate test reports, and support the export of test reports, convenient for users to record real-time data;
> Intuitive device configuration and management interface, clear connection status;
> Waveform saving and loading function, which can manage the saved waveform;
> Standard library, device support updates.
|
Function Highlights Detailed Description |
|
|

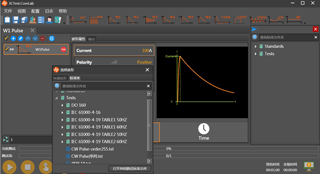

Multi-window graphical UI：
Support to open multiple test editing Windows at the same time, each window independent setting operation, with waveform legend, parameter meaning at a glance |

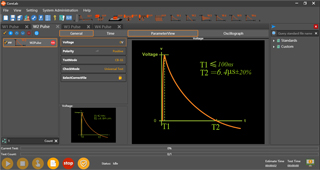

Support parameter scheduling test, test sequence, one-click test, simple operation:
Multiple test step sequences can be added to a test, which is convenient for users to carry out a series of experiments on one or more sets of test objects, and achieve one-click test with simple operation. For test parameters, Corelab also supports scheduling Settings for multiple parameters to achieve iterative testing of parameters, avoiding frequent parameter setting. |
|

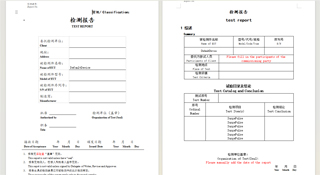

Export test reports for users to record real-time data:
You can set the default report header, or you can edit the test report template according to the instruction manual and examples. After the test, a report containing experimental data is automatically generated. You can also manually generate a report before the test starts to record some information during the test. |

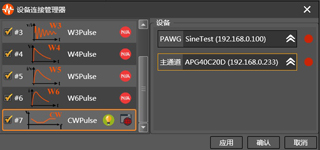

Intuitive device configuration and management interface, you can see the connection status Device connection status:
All device information is displayed on a separate configuration interface, and the connection status and online status of the instrument are clear.
|
|

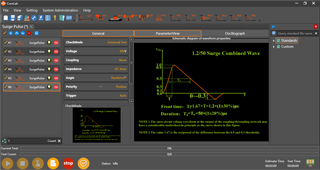

The function of saving and loading waveform can manage the saved waveform The experimental parameters can be set, saved, and quickly accessed for testing. Editable settings for saving file names and setting save paths.
Corelab can save standard library or custom programmed waveforms and load these saved files. Corelab manages user-defined programmed files, allowing users to customize folder names and save file names for easy management and re-call testing. |
|
|
Software Support Standard Library |
|
|
> DO160 22.01 PIN
|
> MIL CS116
|
|
Software support equipment |
|
|
CCS 500
|
ETS 160MB
|
