HOME>Products>Automotive EMC Test Equipments>ISO 7637-4 >High-Voltage Shielding Equipment HVSE 400

High-Voltage Shielding Equipment HVSE 400

Model：HVSE 400

Profile

The high-voltage shielding equipment HVSE 400 is designed to improve the shielding effect of artificial mains network TANHV 400, which is required for tests in the electric vehicles or hybrid electric vehicles.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

HVSE 400 is designed to improve the shielding effect of artificial mains network TANHV 400, which is required for tests in the electric vehicles or hybrid electric vehicles. HVSE 400 is equipped with Aluminum shell, three quick fasteners and gas springs, able to be opened and closed within a few seconds, and unique cable connectors on front and back panels, allowing for quick installation of test cables.

Features:
Supreme shielding effect;
Fast opening and closing;
Unique cable connectors, convenient to install the test cables;

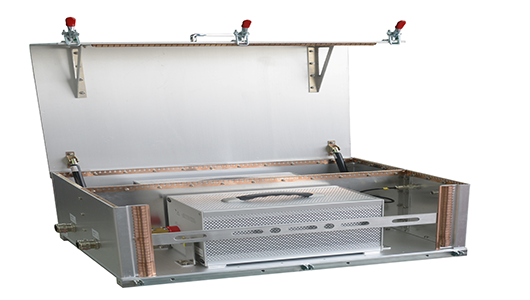

Inside View

CISPR25
ISO 7637-4

Technical Parameters
Front Panel Connectors	4 x N female, RF HV+, RF HV-;
Front Panel Connectors	2 x AUX
Back Panel Connectors	HV+, HV-;
Shielding Effect	Typ. > 100 dB;
Corresponding LISN	TANHV 400
Cable Dia.	11 mm – 21 mm
Cable Connector Size	36 mm
General Parameters
Operating Temp.	15℃ - 35℃
Operating Humidity	45% - 75%
Operating Air Pressure	86 kPa – 106 kPa
Dimension	720 x 562 x 286 mm
(L x W x H)	720 x 562 x 286 mm
Weight	Approx. 25 kg
Material	Aluminum

Standard Accessories
Quality Guarantee	1 pc
Factory Inspection Report	1 pc
User Manual	1 pc
