Technical Parameters |
|
|
Coupling Waveform |
1.2/50 μs、8/20 μs |
|
Pulse Voltage |
6 kV (10 kV is available on request) |
|

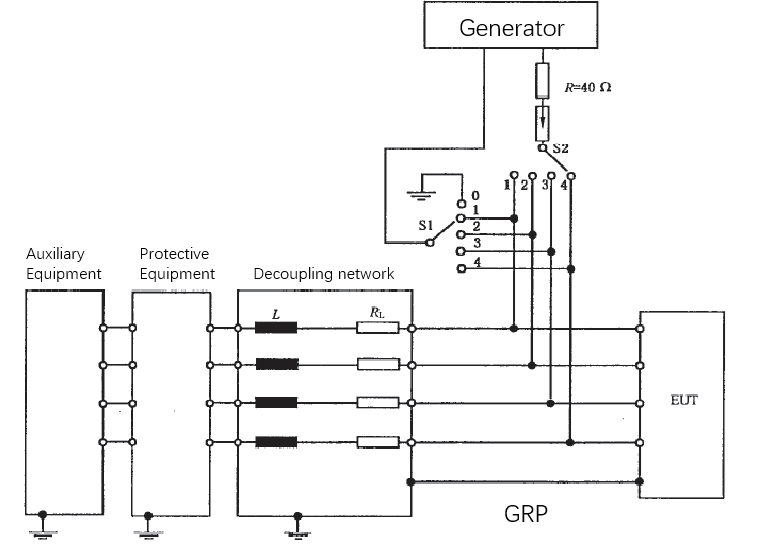

Coupling Mode |
Line-to-ground、Line-to-Line or four-line-to-ground |
|
Coupling Component |
90 V GDT (built-in) 0.5 μF capacitor (built-in) |
|
Output Impedance |
40 Ω±5%（standard configuration） |
|
Communication Port |
4 mm banana plug |
|
Working Voltage |
Up to 6 V DC（GDT coupling） Up to 250 V AC/DC（Capacitor coupling） |
|
Working Current |
Up to 2 A |
|
Decoupling Inductance |
20 mH |
|
Residual Voltage |
＜10%（surge test voltage）；capacitor coupling ＜100 V（surge test voltage）；GDT coupling |
|
General Parameters |
|
|
Weight |
17 kg |
|
Dimension |
6U |
|
Ambient Temperature |
15 ℃ ~ 35 ℃ (operating condition) |
|
Relative Humidity |
45% ~ 75% (operating condition) |
|
Accessories |
|
|
Test line, Impedance Module SZR0, Impedance Module SZR40, User Manual |
|
|
Options |
|
|
SZR 80 |
80 Ω±5% 7 kV |
|
SZR 160 |
160 Ω±5% 7kV |
