Vehicle Micropulse Generator TIS 300

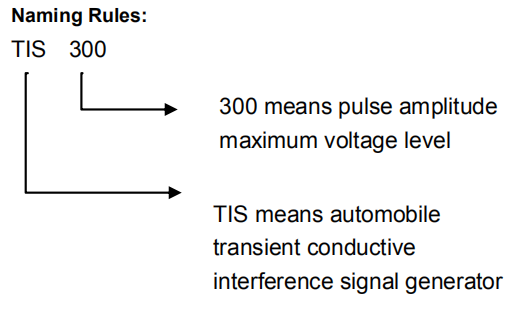

Model：TIS 300

Profile

The vehicle micropulse generator TIS 300 is designed for testing instrument for automobile and motorcycle in accordance with Type A2, B2, C2 specified in QC/T727-2007: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

The TIS 300 is designed for testing instrument for automobile and motorcycle in accordance with Type A2, B2, C2 specified in QC/T727-2007 and type A2, B2 and D2 specified in JASO D001-94. It features touch screen operation and easy test setting.

Features：
> 5.7” color touch screen front panel operation;
> Meet the requirement of type A2, B2 and C2 specified in standard QC/T727-2007;
> Meet the requirement of type A2, B2 and D2 specified in standard JASO D001-94;
> Max. pulse amplitude up to 300 V;
> Internal bus of CN25 and CAN can transmit DUT’s voltage signal to power supply terminals, and can also be used for communication with equipment of others make;

QC/T 727-2007
JASO D001-1994

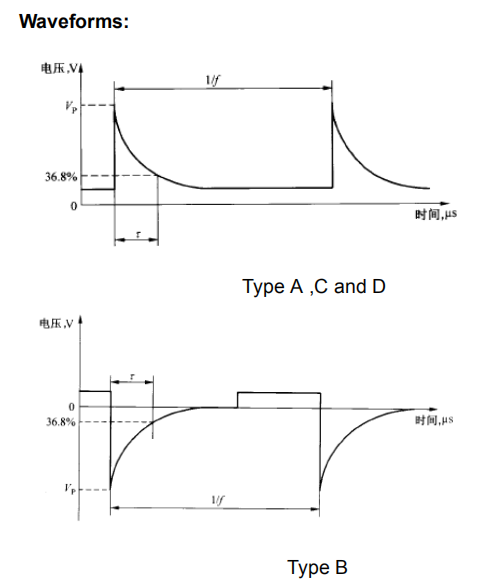

Type A2
Pulse Amplitude - Vp	30 V-200 V (±10%)
Rise Time - Tr（Vp）	≤1 μs
Decaying Time Constant - τ	2.5 μs
Output Impedance - R1	0.4 Ω
Repetition Frequency	1/30 Hz
Number of Pulses	10
Polarity	Positive
Type B2
Pulse Amplitude - Vp	30 V-300 V (±10%)
Rise Time - Tr（Vp）	≤1 μs
Decaying Time Constant -τ	2000 μs
Output Impedance - R1	80 Ω
Repetition Frequency	1/30 Hz
Number of Pulses	100
Polarity	Negative
Type C2 (D2)
Pulse Amplitude - Vp	30 V-200 V (±10%)
Rise Time - Tr（Vp）	≤1 μs
Decaying Time Constant -τ	2.5 μs
Output Impedance - R1	0.9 Ω
Repetition Frequency	1/30 Hz
Number of Pulses	10
Polarity	Positive
General Parameter
Power Supply	AC 110 V/220 V（±10%），50 Hz /60 Hz (±5%) (In mainland area: AC 220V 50Hz by default）
Ambient Temperature	15℃–35℃
Relative Humidity	45%–75%
Atmospheric Pressure	86 kPa–106 kPa
Dimension	4U
Weight	Approx. 30 kg

Standard Accessories

Testing wires, power supply cable, fuse (spare part), user manual
