Calibration Device of Peak Impulse Current PIC 1134

Model：PIC 1134

Profile

PIC 1134 is designed according to IEC 61000-4-11, IEC 61000-4-29 and IEC 61000-4-34 for the calibration of peak impulse current during the voltage dips.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

PIC 1134 is designed according to IEC 61000-4-11, IEC 61000-4-29 and IEC 61000-4-34 for the calibration of peak impulse current during the voltage dips. The equipment can switch over capacitance of 1,700 μF, 3,400 μF and 5,100 μF.

Features:
> Flexible control with the switches
> High capacity, input current up to 500 A

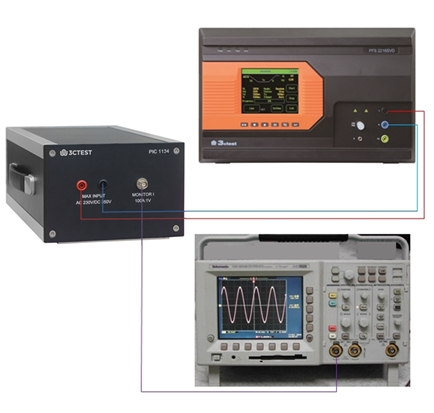

Equipment Connection Diagram:

IEC 61000-4-11
IEC 61000-4-29

Technical Parameters
Drive Capacity Of Peak Impulse Current (No Requirement On Voltage Variation)	Max 500 A (power source 220 V – 240 V); Max 250 A (power source 100 V – 120 V);
Capacitance	1,700 μF;
Discharging Resistor	4700 Ω
Current Monitor Output	100 A：1 V
Max. Rated Voltage	AC 230 V, DC 350 V
Dimension	225 mm (L)135 mm (H)369 mm(D)
Weight（kg）	Approx. 6 kg

Standard Accessories
Testing Wire	2 pc
Coaxial cable	1 pc
Quality Guarantee	1 pc
Factory Inspection Report	1 pc
User Manual	1 pc
