Impedance Box 500Ω SG-1.2/50-500

Model：SG-1.2/50-500

Profile

Impedance box 500Ω is used as a matched module for impedance of surge pulses to meet the test requirements of EUT impulse withstanding voltage testing.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

Impedance box 500Ω is used as a matched module for impedance of surge pulses to meet the test requirements of EUT impulse withstanding voltage testing. The waveform parameters on the output port of impedance box are in accordance with the open-circuit voltage waveform requirements of IEC 61000-4-5.

Characteristic:
> Compact size
> Easy to connection

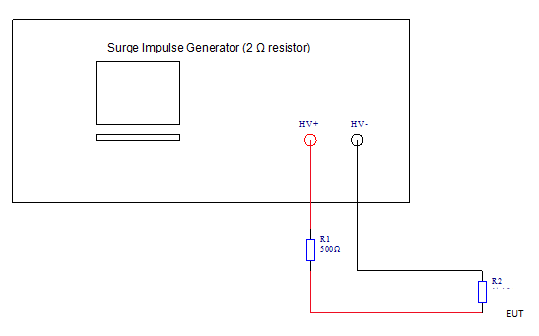

Test Connection Schematic Diagram

IEC 61000-4-5

Technical Parameters
Testing Voltage Range	300V-6000V
Waveform Parameters	1.2 μs±30%、50 μs±20%
Impedance	500 Ω±5%
Output Terminal and Enclosure withstanding voltage	10kV DC
General Parameters
Dimension		230 mm150 mm85 mm
Weight		Approx.1 Kg
Ambient Temperature		15℃-35℃
Relative Humidity		45% - 75%
Atmosphere Pressure Range		86 kPa – 106 kPa

Standard Accessories

Operating Instruction, Factory Inspection Report, Testing Cables and Quality Guarantee.
