Current Injection Clamp Calibration Fixture BCICF-400

Model：BCICF-400

Profile

BCICF-400 Current injection clamp Calibration fixture is used for calibrating and testing current injection clamp, current measurement probe, etc. Bcicf-400 is a broadband signal transmission/coupling device.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

BCICF-400 Current injection clamp Calibration fixture is used for calibrating and testing current injection clamp, current measurement probe, etc. Bcicf-400 is a broadband signal transmission/coupling device. It has the characteristics of wideband signal transmission, small voltage standing wave ratio and no distortion of waveform. Meet the needs of the national military standard GJB 151A-97, GJB 151B-2013, the U.S. military standard MIL-STD-461E/F/G CS114, CS115, CS116 test items, widely used in electromagnetic compatibility conduction sensitivity (immunity) test.

GJB 151B-2013
MIL-STD-461E/F/G

General Parameters
Frequency	DC 400 MHz
Typical Impedance	50 Ω

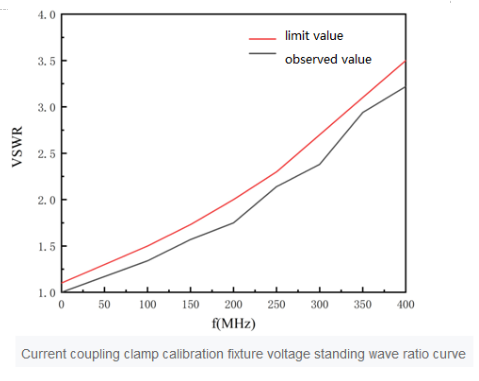

Voltage Standing Wave Ratio	≦3.5

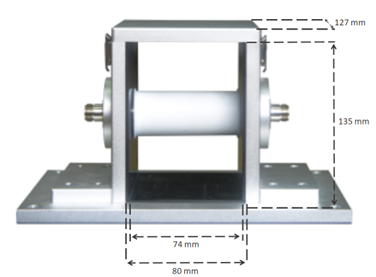

Internal Diameter	80 mm
External Diameter	127 mm
Height	135 mm
Weight	4.4 kg
