The CDN 405M40 is designed in accordance with IEC 61000-4-5 and GB/T17626.5 and used for coupling surge onto 2-line (1-pair) unshielded unsymmetrical data and control cables for voltage up to 6 kV. All the plugs are type of banana to ensure the safety of users.
Features：
> Applied to 2 lines (1 pair) unshielded unsymmetrical Lines;
> Equipped with banana plugs ensuring the safety of users;
> Applied to 1.2/50 s, 8/20 μs combination waves

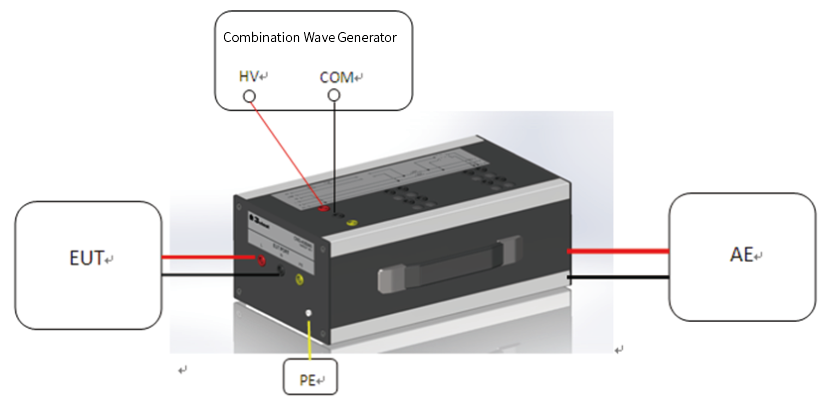

Test Connection Schematic Drawing

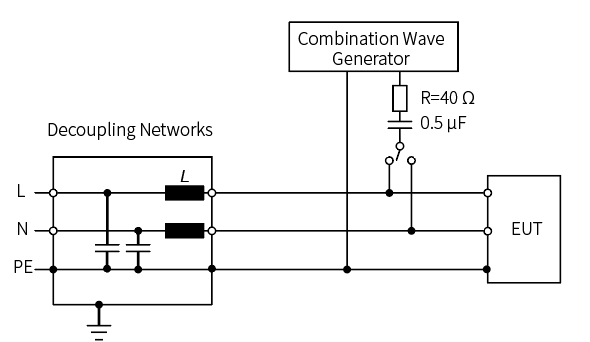

Standard Schematic Diagram Figure 1
As per IEC 61000-4-5：2017 Figure 5

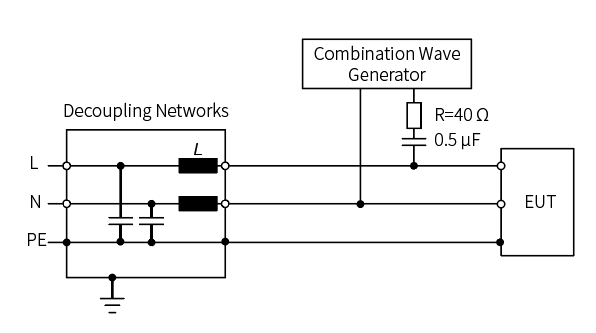

Standard Schematic Diagram Figure 2
As per IEC 61000-4-5：2005 Figure 6
|
Technical Parameters |
|
|
Model No. |
CDN 405M40 |
|
Standard |
|
|
Coupling Waveform |
1.2/50 μs、8/20 μs |
|
Output Impedance |
40 Ω ± 5% |
|
Impulse Voltage |
6 kV |
|
Coupling Component |
0.5 μF capacitor (Built-in, Standard equipped) |
|
Coupling Mode |
2 lines (1 pair) unshielded unsymmetrical line |
|
Communication Interface Specification |
Banana plug 4 mm |
|
Working Voltage |
Max. 250 V AC/DC |
|
Working Current |
Max. 16 A |
|
Decoupling Inductance |
1.5 mH |
|
Residual Voltage |
＜15%（Coupling surge voltage） |
|
General Parameters |
|
|
Weight |
Approx. 10 kg |
|
Dimension |
360 mm (L) x220 mm (W) x135 mm (H) |
|
Enclosure Material |
Aluminum alloy |
|
Ambient Temperature |
15℃ - 35 ℃ |
|
Relative Humidity |
45%-75% |
|
Package Case |
Carton |
|
Accessories |
|
Test line, User manual, Short-circuit plug |
