Technical Parameters |
|
|
Standard |
IEC/EN 61000-4-5/ ITU-T K.21 -2011 |
|
Coupling Waveform |
1.2/50 μs、8/20 μs |
|
Output Impedance |
SZR40 (40 Ω±5%) (Standard equipped) |
|
Coupling Waveform |
10/700 μs、5/320 μs |
|
Output Impedance |
SZR0 (0 Ω) (Standard) (The source impedance of generator is 40 Ω) |
|
Impulse Voltage |
6 kV (10 kV on request) |
|

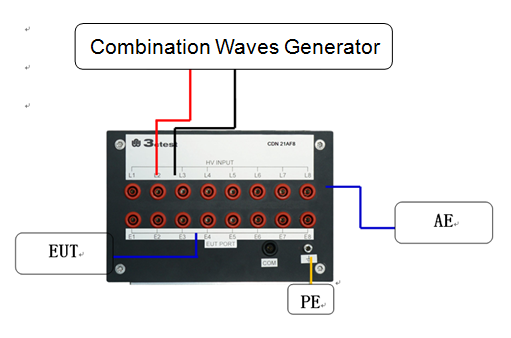

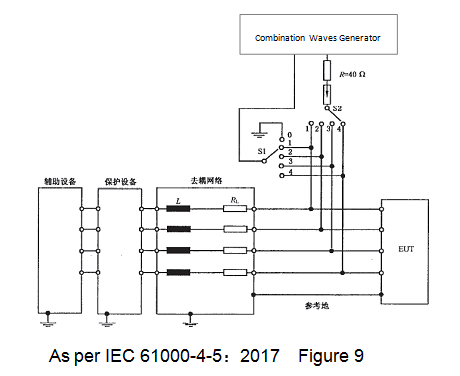

Coupling Mode |
8 lines (4 pairs) unshielded unsymmetrical L-PE, L-L |
|
Coupling Component |
SCD90 (90 V Air Discharge Tube) built-in standard |
|
Communication Port |
Female RJ45 Connector, connect with telecom cables |
|
Data Rate |
|
|
Operating Voltage |
Max. 90 V DC |
|
Operating Current |
Max. 1 A |
|
Decoupling Inductance |
20 mH |
|
Residual Voltage |
90 V（Coupling surge voltage） |
|
General Parameters |
|
|
Weight |
Approx. 10 kg |
|
Dimension |
360 mm(L) x 220 mm(W)x135 mm(H) |
|
Enclosure Material |
Aluminum |
|
Ambient Temperature |
15°C-35°C |
|
Relative Humidity |
45% - 75% |
|
Package Case |
Carton |
|
Accessories |
|
|
Test cables |
red、black（double-end sheath） |
|
Yellowish green（with sheathing clamp at one end and sheath at the other end） |
|
|
Ethernet cable |
1 m (with Ethernet cable at one end and 8-line at the other end) |
|
1 m（Cable 4 and Cable 6 are jumper at equipment end） |
|
|
Resistance Module |
SZR0, SZR40 |
