HOME>Products>Automotive EMC Test Equipments>Automotive Voltage Variation Simulator >Signal / Data Line Failure Simulator DFS 4002A

Signal / Data Line Failure Simulator DFS 4002A

Model：DFS 4002A

Profile

Signal / data line failure simulator DFS 4002A meets the test requirements of LV 124 (E10, E13, E14) and LV 148 (E48-09) of German automobile manufacturers. It is equipped with 16-channel switch: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

DFS 4002A meets the test requirements of LV 124 (E10, E13, E14) and LV 148 (E48-09) of German automobile manufacturers. It is equipped with 16-channel switch, with rated current of 100 uA – 2A for each channel.

Features:
Equipped with mains supply switch (100A), and signal / data line switch (2A);
Equipped with 16 independent channels, switchable, programmable to have any channels;
Equipped with independent ground loop;

Rise / fall time: < 1 µs;

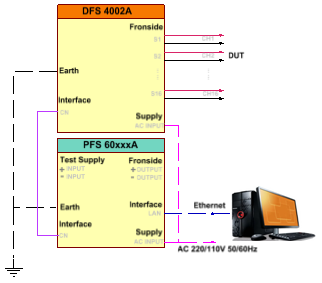

Equipment Connection Diagram:

LV 123
OEM LV 124 (2013-02)
LV 148
OEM LV 148
GMW 3172
VW80000-2013

Technical Parameters
Channels	16 independent channels, switchable, programmable to have any channels;
EUT Voltage	Max ±60 V DC
EUT Current	100 µA - 2 A (each channel, at 25 °C)
Polarity	+/-
Repetition Rate	0.001s - 99.9s (or as customized)
T rise, T fall	< 1 µs ( @ 1 kΩ;@ 1 Ω (V = 2 V))
Switch Impedance	< 500 Ohm
Interruption Time	1 µs (10% +/-1us) - (or as customized)
Synchronization	Can be operated with PFS 60xxA (Power Failure Simulator), Synchronization error: <1 µs
Peak Current	5 A
General Parameters
Main Control	Same as PFS 60xxA
Display	5.7” TFT touch screen
Power Supply Range	AC 110V/220V±10%，50/60Hz±5%
Max Power	200 W
Dimension	19”/ 4 U
Weight	About 18Kg
Temperature	15-35℃
Humidity	45% - 75%
Air Pressure	86kPa – 106kPa

Standard Accessories
Power supply cable,Factory Inspection,Report User manual,Calibration resistor for data cable R1Ω, Calibration resistor for data cable R1000Ω
