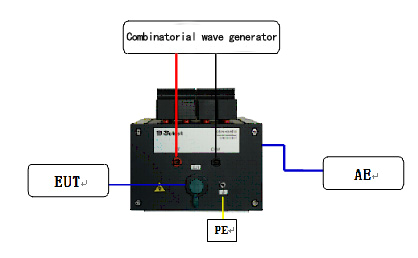

CDN 405T8A1(10 kV) is designed for surge test on high-speed communication line up to 1,000 MBit/s in accordance with figure 10 specified in IEC/EN 61000-4-5: 2014. It uses high conductive magnetic material as decoupling device, decoupling performance and transfer rate is stable.
Features:
> Using high conductive magnetic material as decoupling device;
> Test output to 4-path 8-line communication line;
> Transmission rate 10 MB/100 MB/1000 MB;
> Capable of superposing surge simultaneously;
> Powerful withstand surge impulse capacity, withstand voltage is up to 10 kV;
> Replaceable current-limiting resistor;

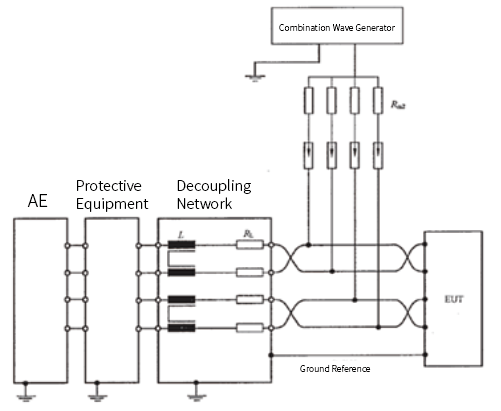

Design Schematic Circuit (as per IEC 61000-4-5:2017 Figure 10):
|
Technical Parameters |
|
|
Model No. |
CDN 405T8A1(10 kV) |
|
Standard |
IEC 61000-4-5：2017 IEC 61000-4-5：2005 |
|
Coupling Voltage Waveform |
1.2/50 μs, 10/700 μs |
|
Coupled Current Waveform |
8/20 μs, 5/320 μs |
|
Pulse Voltage |
10 kV |
|
Coupling Mode |
Common mode（line to ground） |
|
Coupling Device |
90 V gas discharging tube (GDT) |
|
Output Impedance |
Current-limiting resistance can be replaced according to test requirements |
|
Communication Port |
RJ45 female connector (to connect telecommunication cable) |
|
Pin Assignment |
Pair 1: pins 1 / 2 Pair 2: pins 3 / 6 Pair 3: pins 4 /5 Pair 4: pins 7 / 8 |
|
Data Transmission Rate |
10 MBit/s, 100 MBit/s, 1,000 MBit/s |
|
Working Voltage |
DC: 3-12 V |
|
Working Current |
Max. 1 A |
|
Residual Voltage |
<15%（coupling surge voltage） |
|
General Parameters |
|
|
Weight |
Approx. 60 kg |
|
Dimension |
615 mm(L)×330 mm(W)×315 mm(H) |
|
Enclosure Material |
Aluminum Alloy |
|
Ambient Temperature |
15 ℃ ~ 35 ℃ operating environment |
|
Relative Humidity |
45% ~ 75% |
|
Package Case |
Carton |
|
Standard Accessories |
||
|
HV Cable |
1 m HV silicon cable with banana plug |
2 |
|
Ground Cable |
0.3 m yellow green cable |
1 |
|
Short Connector |
U type |
8 |
|
Internet Cable |
1 m cat 6 internet cable |
2 |
|
Document |
Factory test report |
1 |
|
User manual |
1 |
|
|
Optional accessories |
||
|
NR80 |
80 ohm×2 (for 2 lines, 1.2/50 μs,8/20 μs) |
|
|
NR160 |
160 ohm×4 (for 4 lines, 1.2/50 μs,8/20 μs) |
|
|
NR320 |
320 ohm×8 (for 8 lines, 1.2/50 μs,8/20 μs) |
|
|
NR50 |
50 ohm×2 (for 2 lines,10/700 μs,5/320 μs) |
|
|
NR100 |
100 ohm×4 (for 4 lines,10/700 μs,5/320 μs) |
|
|
NR200 |
200 ohm×8 (for 8 lines,10/700 μs,5/320 μs) |
|
|
NR25 |
25 ohm×8 (for 8 lines,10/700 μs,5/320 μs) |
|
