Coupling/Decoupling Network for Unshielded Remote Signal Line CDN 405AF2Y

Model：CDN 405AF2Y

Profile

CDN 405AF2Y is designed for surge test on 1-pair 2-line unshielded remote signal line for voltage up to 6 kV.: PDF Consultation

Online customized according to your needs>>

Share

Feature
Standard
Parameter
Fitting
Services
Video

CDN 405AF2Y is designed for surge test on 1-pair 2-line unshielded remote signal line for voltage up to 6 kV. Powerful decoupling capacity makes auxiliary equipment free of surge to make sure test repeatability. Max. residual voltage on AE port is only 90 V when the surge voltage is 2 kV without extra decoupling elements.

Features：
> Applicable to remote signal test of electric power system;
> Used for 1-pair (2-line) unshielded asymmetric lines;

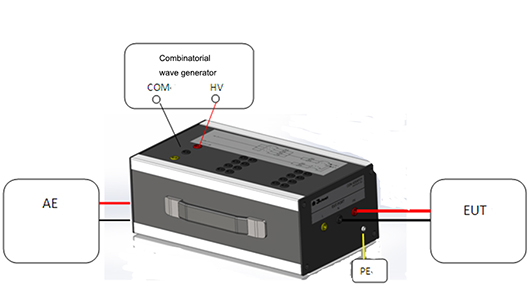

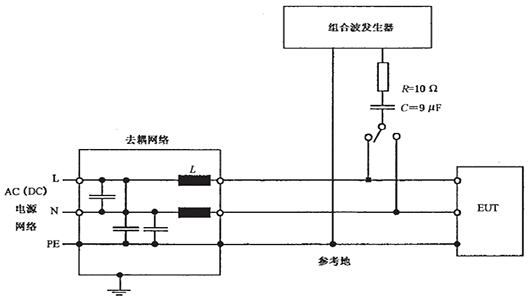

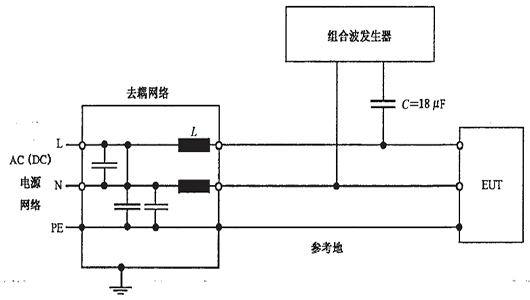

Test connection schematic：

IEC 61000-4-5
GB/T 17626.5
EN 61000-4-5

Technical Parameters
Model	CDN 405AF2Y
Standard	IEC/EN 61000-4-5
Output Voltage Waveform	1.2/50 μs
Output Current Waveform	8/20 μs
Max. Current	16 A
EUT Port	4 mm Banana
AE Port	4 mm Banana
Max. Test Voltage	6 kV
Coupling Component	GDT 90 (90V GDT, built-in)
Operating voltage	DC: 3 V – 12 V
Residual voltage	＜15%（surge voltage）
General Parameters
Weight		Approx. 10 kg
Dimension		360 mm(L)×220 mm(W)× 135 mm(H)
Enclosure Material		Aluminum Alloy
Ambient Temperature		15 ℃ - 35 ℃
Relative Humidity		45%-75%
Package case		Carton

Accessories
HV cable	1
Short connection cable	1
Ground cable	1
