APS series can be used as battery supply simulation and DC voltage source. During test in test lab, APS series can replace vehicle battery. Pulse 2b, Pulse 4, sine wave noise and other complicated voltage variation test can be conducted by APS series simulator as per ISO 7637/16750. It can simulate multiple battery supply waveforms as per international standards and multiple automotive manufacture standards. Also, as a powerful DC source, it can supply power for DUT during automotive transient pulse test, which can meet three kinds of supply voltage. APS series can also be used as power amplifier for magnetic field immunity test.
> 5.7 inch color touch screen
> Test voltage up to 60V
|
Geneeral data |
|
|
Output voltage |
Single polarity output: 0~40V |
|
Bipolar output: -40V ~40V |
|
|
Voltage resolution |
±0.2V |
|
Output current |
-30A ~30A |
|
Analog signal input |
BNC |
|
Sense signal input |
BNC |
|
Source impedance |
＜10mΩ |
|
Voltage compensation resolution |
±0.1V |
|
Max. compensated voltage |
4V |
|
Voltage deviation |
＜1V（resistive load, including impulse current）, recover to 63% of max. amplitude during 100us |
|
Voltage fluctuation |
Ur＜0.2V P-P, min. frequency: 400Hz |
|
Rise time |
＜10us(resistive load) |
|
Sine signal output |
Frequency up to 100kHz（as per Vpp and output current of waveform） |
|
External signal input |
0 ~ ±10v |
|
output |
DUT supply: high current connector |
|
Serial port |
LAN Ethernet RJ45 |
|
enlarging scale of external signal |
1:10 |
|
Supply voltage |
AC 110/220V，±10%，45-65Hz |
|
Temperature |
15 ~ 35 ℃ |
|
Humidity |
45%--75%RH（no condensation） |
|
Dimension |
19 inch / 4U |
|

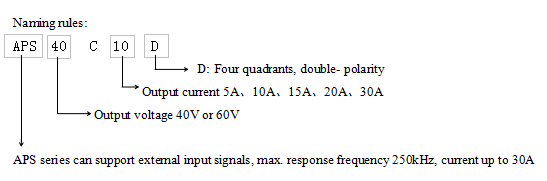

APS series models |
|||
|
Simulator and power amplifier |
High resolution programmable DC source |
parameters |
size |
|
1、APS （Unipolarity） |
|||
|
APS 40C05 |
internal |
DC 40V 5A max, 15A continuous 500ms |
19’’/4U |
|
APS 40C10 |
internal |
DC 40V 10A max, 15A continuous 500ms |
19’’/4U |
|
APS 40C15 |
internal |
DC 40V 15A max, 15A long time |
19’’/4U |
|
APS 40C20 |
DCP 40C20 |
DC 40V 20A max, 30A continuous 500ms |
19’’/8U |
|
APS 40C30 |
DCP 40C30 |
DC 40V 30A max, 60A continuous 500ms |
19’’/8U |
|
2、APS (Bipolar) |
|||
|
APS 40C05D |
DCP 40C05D |
DC 40V 5A max, 30A continuous 500ms |
19’’/8U |
|
APS 40C10D |
DCP 40C10D |
DC 40V 10A max, 30A continuous 500ms |
19’’/8U |
|
APS 40C15D |
DCP 40C15D |
DC 40V 15A max, 30A continuous 500ms |
19’’/8U |
|
APS 40C20D |
DCP 40C20D |
DC 40V 20A max, 60A continuous 500ms |
19’’/8U |
|
APS 40C30D |
DCP 40C30D |
DC 40V 30A max, 60A continuous 500ms |
19’’/8U |
|
Basic equipment |
|||
|
Simulator, test cable, power cord, fuse, factory test report, warranty report and user manual |
|||
|
Optional accessory |
|||
|
1. PC control software AUTO Lab |
|||
|
With PC installed WIN XP and WIN7, it can be easily operated to make the measurement, based on the customized test program. It can identify any device for AUTO Lab test with automatic configuration. It can easily generate test reports. |
|||
