General Parameters |
||||
Output voltage |
Single polarity output: 0~60 V |
|||
Voltage resolution |
±0.2 V |
|||
Output current |
0 A ~30 A |
|||
Analog signal input |
BNC |
|||
Sense signal input |
BNC |
|||
Source impedance |
10 mΩ ~ 200 mΩor without inner impedance |
|||
Voltage compensation resolution |
±0.1 V |
|||
Max. compensated voltage |
4 V |
|||
Voltage deviation |
>90%, recovery time<10 μs |
|||
Voltage fluctuation |
Ur<0.2 V P-P, min. frequency: 400 Hz |
|||
Rise time |
<3 μs |
|||
Sine signal output |
Frequency up to 300 kHz(as per Vpp and output current of waveform) |
|||
External signal input |
0 ~ 10 V |
|||
output |
DUT supply: high current connector |
|||
Serial port |
LAN Ethernet RJ45 |
|||
enlarging scale of external signal |
1:10 |
|||
Supply voltage |
AC 220 V,±10%,45-65 Hz(Or AC 110 V can choose) |
|||
Temperature |
15 ~ 35 ℃ |
|||
Humidity |
45%--75% RH(no condensation) |
|||

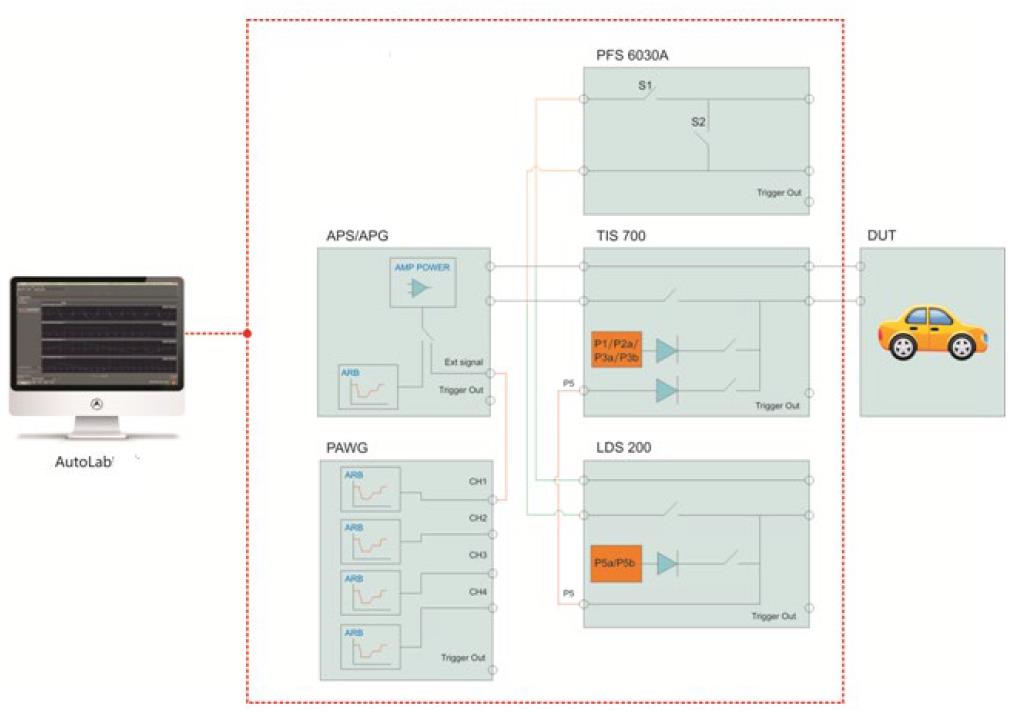

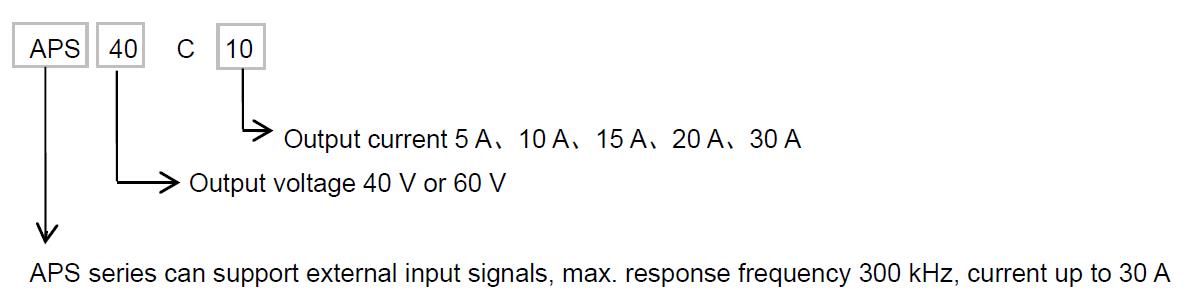

APS series Models |
||||
Simulator and power amplifier |
High resolution programmable DC source |
parameters |
size |
|
1、Supply voltage of 40V |
||||
APS 40C05 |
internal |
DC 40V 5A max, 15A continuous 500ms |
19’’/4U |
|
APS 40C10 |
internal |
DC 40V 10A max, 15A continuous 500ms |
19’’/4U |
|
APS 40C15 |
internal |
DC 40V 15Amax; 15A long time |
19’’/4U |
|
APS 40C20 |
DCP 40C20 |
DC 40V 20A max, 30A continuous 500ms |
19’’/8U |
|
APS 40C30 |
DCP 40C30 |
DC 40V 30A max, 33A continuous 500ms |
19’’/8U |
|
APS 40C30.1 |
DCP 40C30.1 |
DC 40V 30A max, 60A continuous 500ms |
19’’/8U |
|
2、Supply voltage of 60V |
||||
APS 60C10 |
DCP 60C10 |
DC 60V 10A max, 20A continuous 500ms |
19’’/8U |
|
APS 60C20 |
DCP 60C20 |
DC 60V 20A max, 30A continuous 500ms |
19’’/8U |
|
APS 60C20.1 |
DCP 60C20.1 |
DC 60V 20A max, 40A continuous 500ms |
19’’/8U |
|
APS 60C30 |
DCP 60C30 |
DC 60V 30A max, 36A continuous 500ms |
19’’/8U |
|
APS 60C30.1 |
DCP 60C30.1 |
DC 60V 30A max, 60A continuous 500ms |
19’’/8U |
Basic Equipment |
Simulator, test cable, power cord, fuse, factory test report, warranty report and user manual |
Optional Accessory |
1.PC control software AUTO Lab |
With PC installed WIN XP and WIN7, it can be easily operated to make the measurement, based on the customized test program. It can identify any device for AUTO Lab test with automatic configuration. It can easily generate test reports. |
