Introduction

       The CDN 405T8 is designed to conduct surge test on 4-pair-8-line unshielded symmetric high-speed communication lines for data transmission rate up to 1,000 MBit/s. It fully meets the requirement of IEC/EN 61000-4-5. High conductive magnetic material is used as decoupling component, which makes decoupling capacity and transmission rate stable.

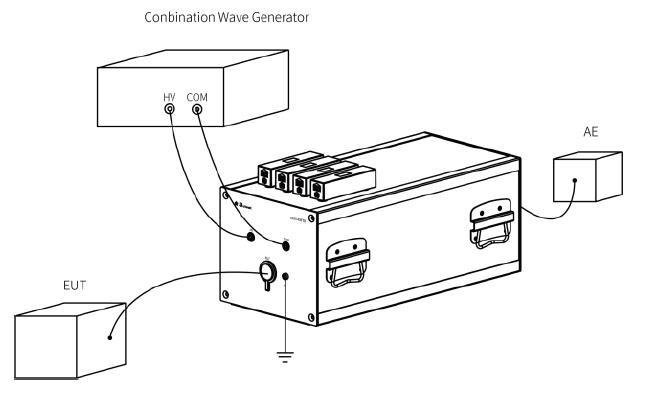

Test Connection Illustration：

For more information, please click : CDN for Surge Test on Unshielded Symmetrical Lines CDN 405T8(POE)
